All new reflector tray design moves more heat out the rear, less in the Chimera. Easier, quicker
bulb changes now with only 2 1/4 turn fasteners on top, and a quick
loading drop-in slot on the bottom. The speed ring is still built in.

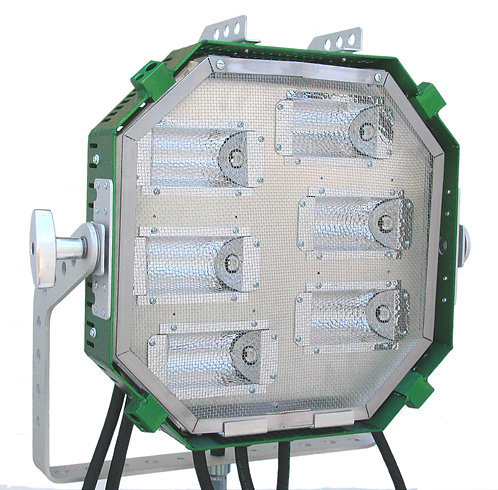

6-Lite V2
A finned socket holder design: helps radiate heat away from the socket and bulb seal area
Additional heat venting: on top of the fixture, directly over the source, combinedwith taller handle brackets, keeps the heat venting evenwhen the Chimera top flap needs to be closed. For the lampoperator, a wider wooden handle relocated lower andfurther out from the body of the fixture.
New mounting and grip handle:
The lightweightmaterials and slim profile of the Barger-Lite means the Chimera will fir in tight spaces and thatthe Lite takes up little shelf space. The 6-Lite V 2.0 weighs only twentypounds, and the 6-Lite body is under four inches deep (including the bail,it’s only eight inches!). The rugged construction makes the 6-Lite anoperator’s dream. Easy to mount, easy to hang, easy to adjust.
Protective front cover: The front cover protects the safety screen and bulbswhen in transit.
Tall switch guards protect the new double pole switches:
Switching both th hot and neutral legs provides another layer of safety when changing bulbs.Save time (and your hands!) by just flipping a switch to change light level. No hot scrims!
Tuck the chimera side flaps: in the convenient holders to control light spill
PHOTOMETRICS: 6 GE FCM-HIR 650 lamps with medium quartz Chimera standard front screen only 500 ASA @ 24 FPS
